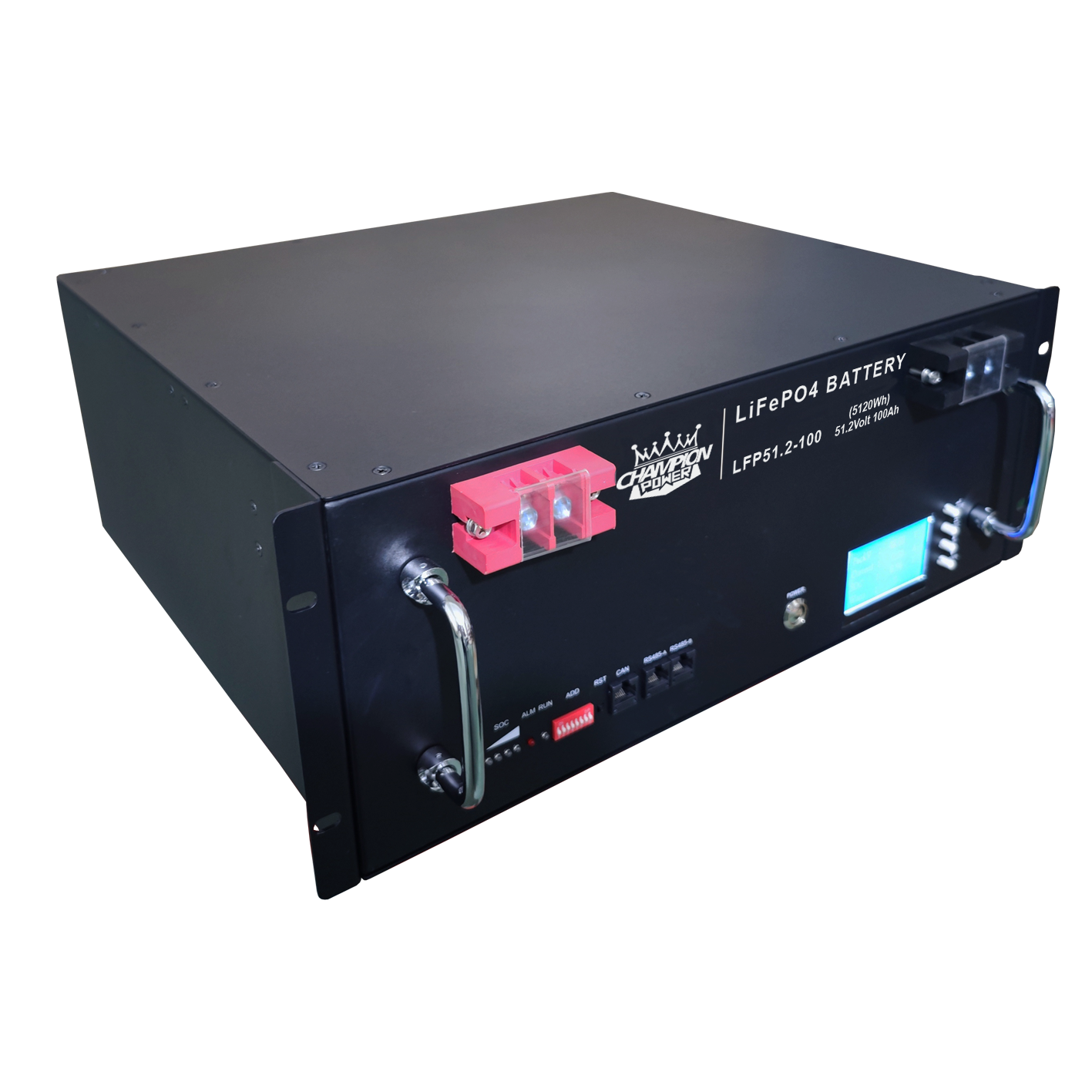

Product Description
| Pack Method | 16S | Nominal Capacity | 100Ah |
| Minimum Capacity | 96Ah | Nominal Voltage | 51.2V |
| Energy | 5120Wh | Charge Voltage | 58.4V |
| Discharge cut-off Voltage | 40.0V | Standard Charge Current | 100A |
| Max.Charge Current | 100A | Standard Discharge Current | 100A |
| Max.Continues Discharge Current | 100A | Cycle Life | ≥6000times |
| Internal Impedance | ≤13mΩ | Dimension（Length*Width*Height） | 443*435*178 |
| Terminal | M6 | Communication interface | RS485,CAN,Bluetooth |
| Monitoring software | LCD/PC operration/APP | Weight | Approx.≈43.00Kg |
Certifications
Products have been certified by ISO9001,ISO14001,ISO18001,CE,UL,RoHs,IEC60896,IEC61427 and “The Network Access Certification of the Ministry of Telecommunication Industry”, “The Ministry of Energy”, “The Ministry of Railway”, and “China National Battery Testing Center”.
